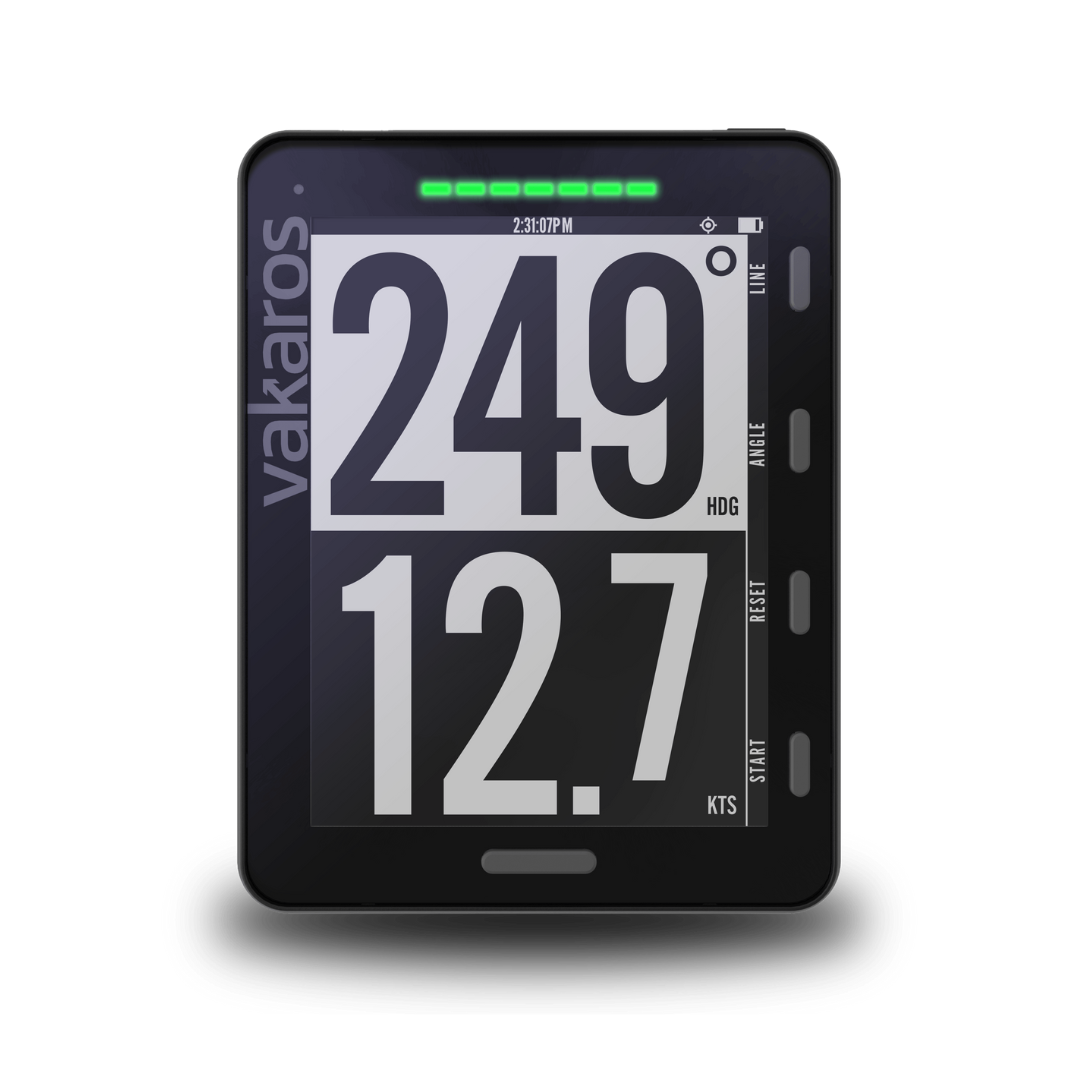

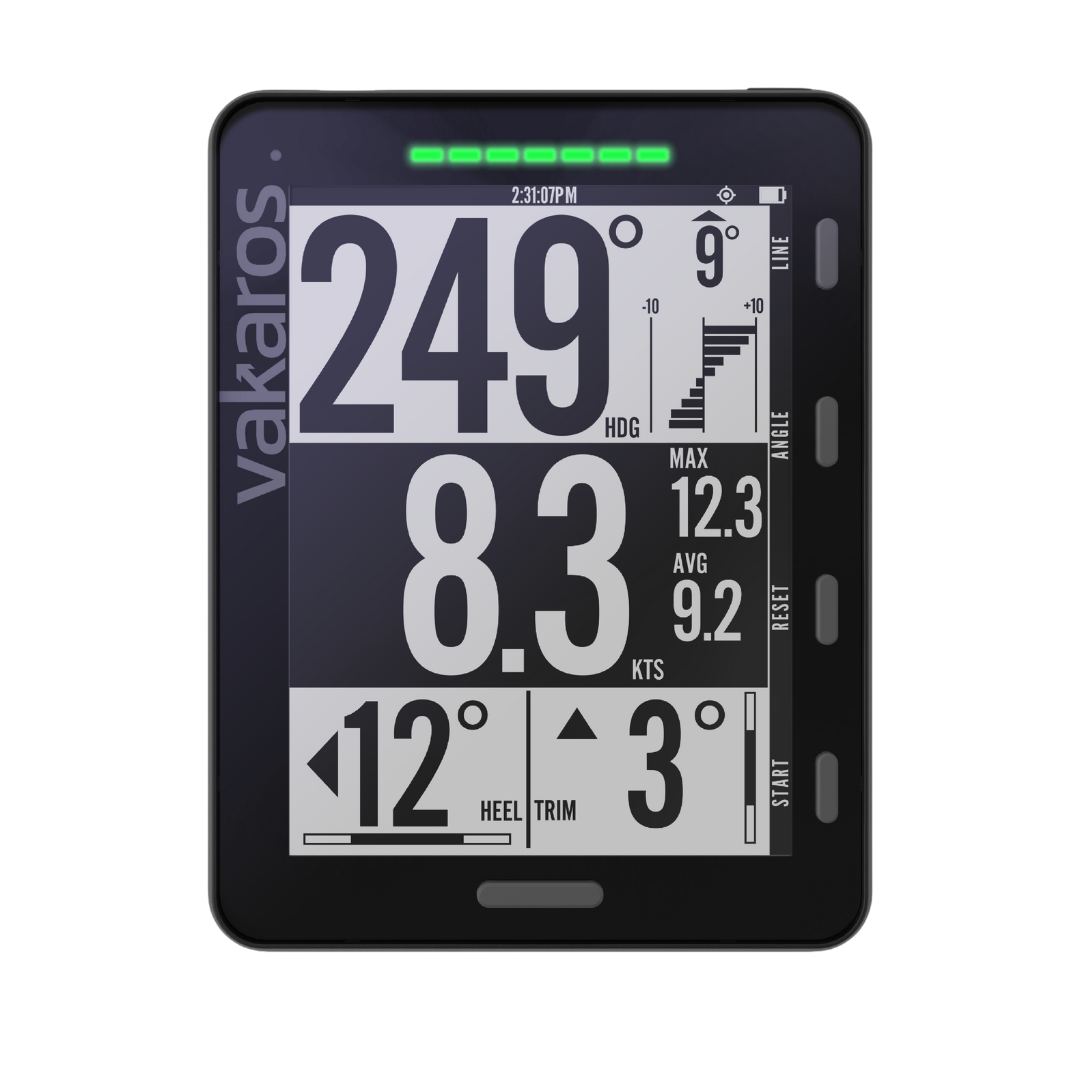

Atlas 2 Sailing Instrument
Atlas 2 Sailing Instrument
Atlas 2 Sailing Instrument

Atlas 2 Sailing Instrument

Regular price$1,199.00
Tax included.

  • In stock, ready to ship
  • Inventory on the way


 ATLAS 2 is BACK IN STOCK! Order now to secure your device ASAP.

Order the Atlas 2 today and get the future of sailing technology. Equip your boat with industry leading L1+L5 GNSS GPS accuracy, beautiful high-contrast displays, and more. The Atlas 2 is the best tool to supercharge your sailing experience.

In the box:

  • Atlas 2

  • Mount

  • Qi Charging pad

  • Carrying case


FREE shipping on orders over $549

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.



The most accurate instrument on the water. Ever.

Atlas 2 is the first sailing instrument capable of dual band, L1 + L5 GNSS reception. Measure positional accuracy in centimeters, only on the Atlas 2.

Optimized for L1 + L5 signals, correcting for ionosphere error and reducing multi-path interference

Multi-constellation reception of GPS, Galileo, GLONASS, and BeiDou

25 Hz update rate: a 40% improvement

Unprecedented 50 cm positional accuracy

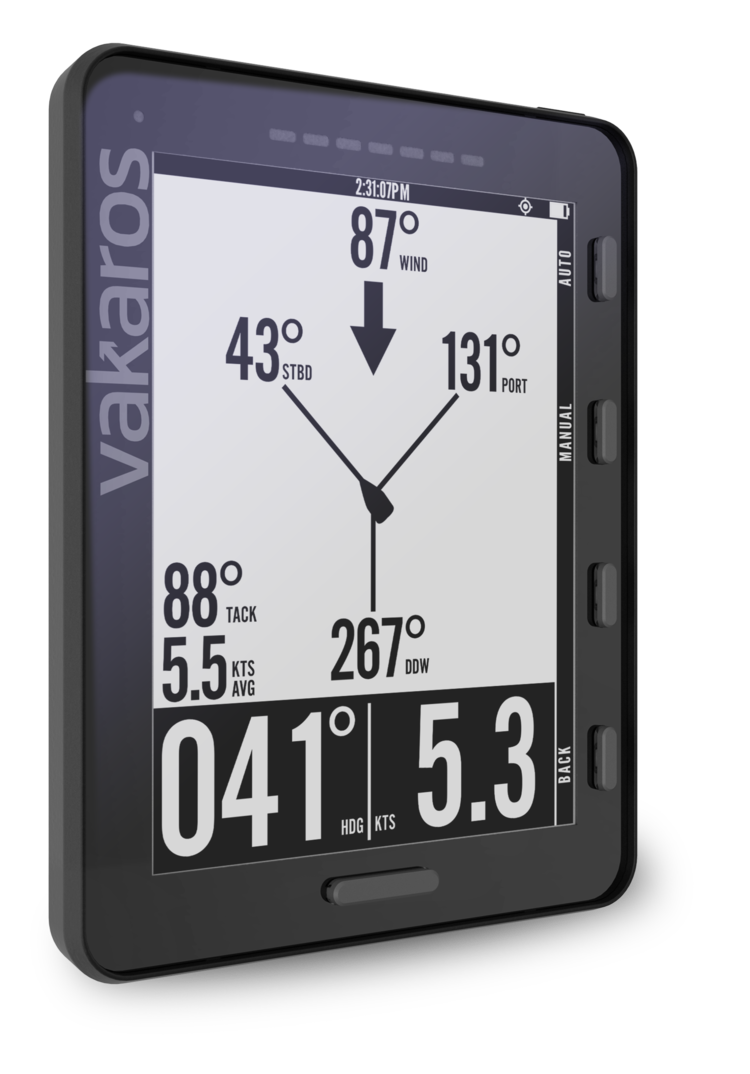

Atlas 2 Shift Tracking

A magnetic compass that knows where it's going.

Atlas 2 takes compass performance to a new level. The state-of-the-art magnetic sensor is 4 times more sensitive and capable of resolving heading changes as small as 0.1°. An advanced motion fusion algorithm and adjustable damping keep the compass steady—even in the roughest conditions. Because if your compass doesn’t know where you’re heading, everything else it tells you is wrong.

Gyro Stabilization

Unmatched 0.1° heading resolution

Motion fusion at 50 Hz

Reference angles so you never miss a shift

for boats big and small

The Atlas 2 is a staple on teams from the 52 Super Series to ILCA training groups. No boat is too big, or small, to benefit.

Win the Start. Extend.

If you win the start, you control the fleet. It’s why we refined every aspect of starting for Atlas 2.

State-of-the-art sensors. Sophisticated algorithms that give numbers you can trust:distance and time-to-line.

Starting screens deliver the situational awareness you need to get to the line on-time and at full speed. But, don’t just take our word for it; ask any number of top pros & World Champions. They’ll tell you the same thing—Vakaros delivers starts that help them win.

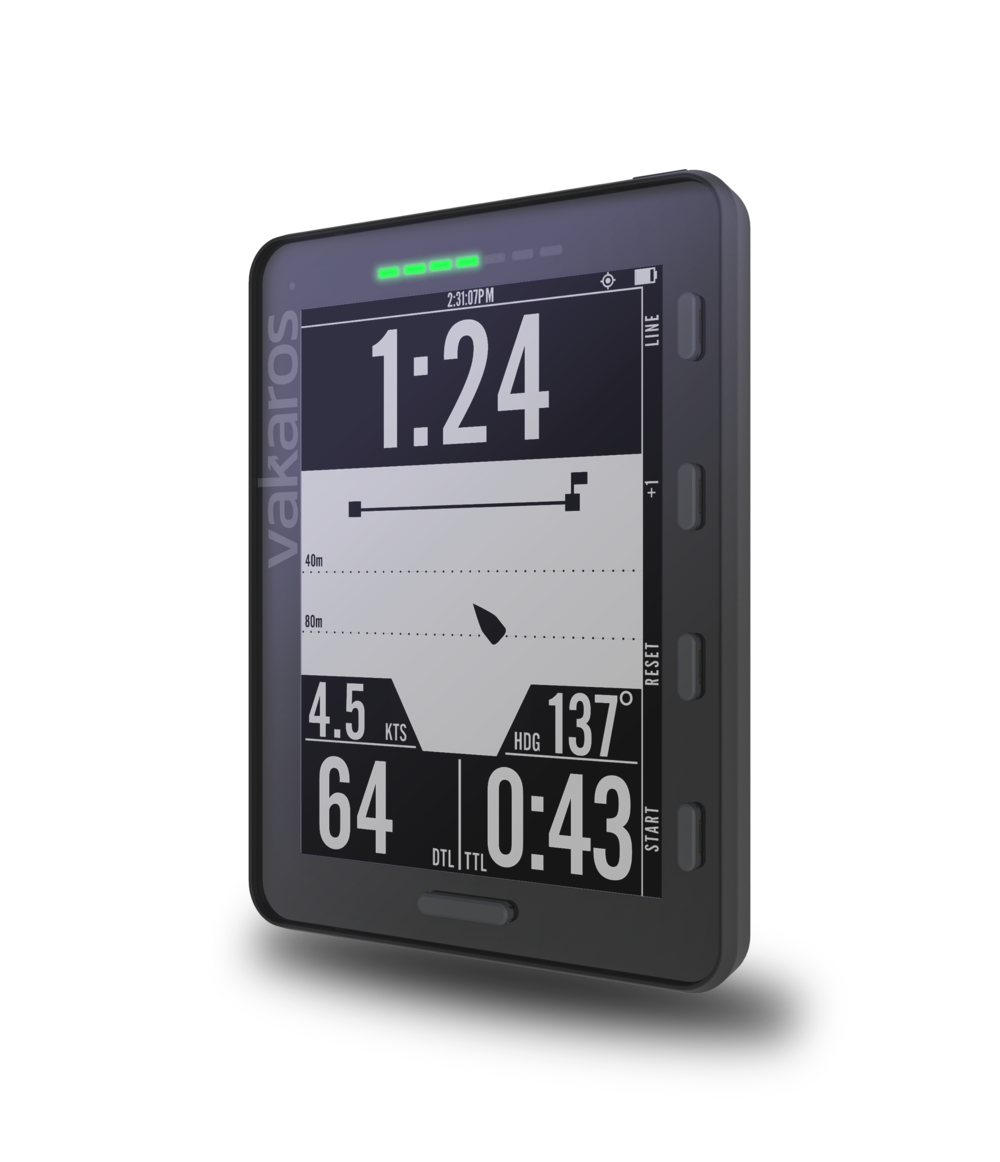

Atlas 2 Starting Screen

It really lets you know where you are, even when you're approaching the line at 20 knots

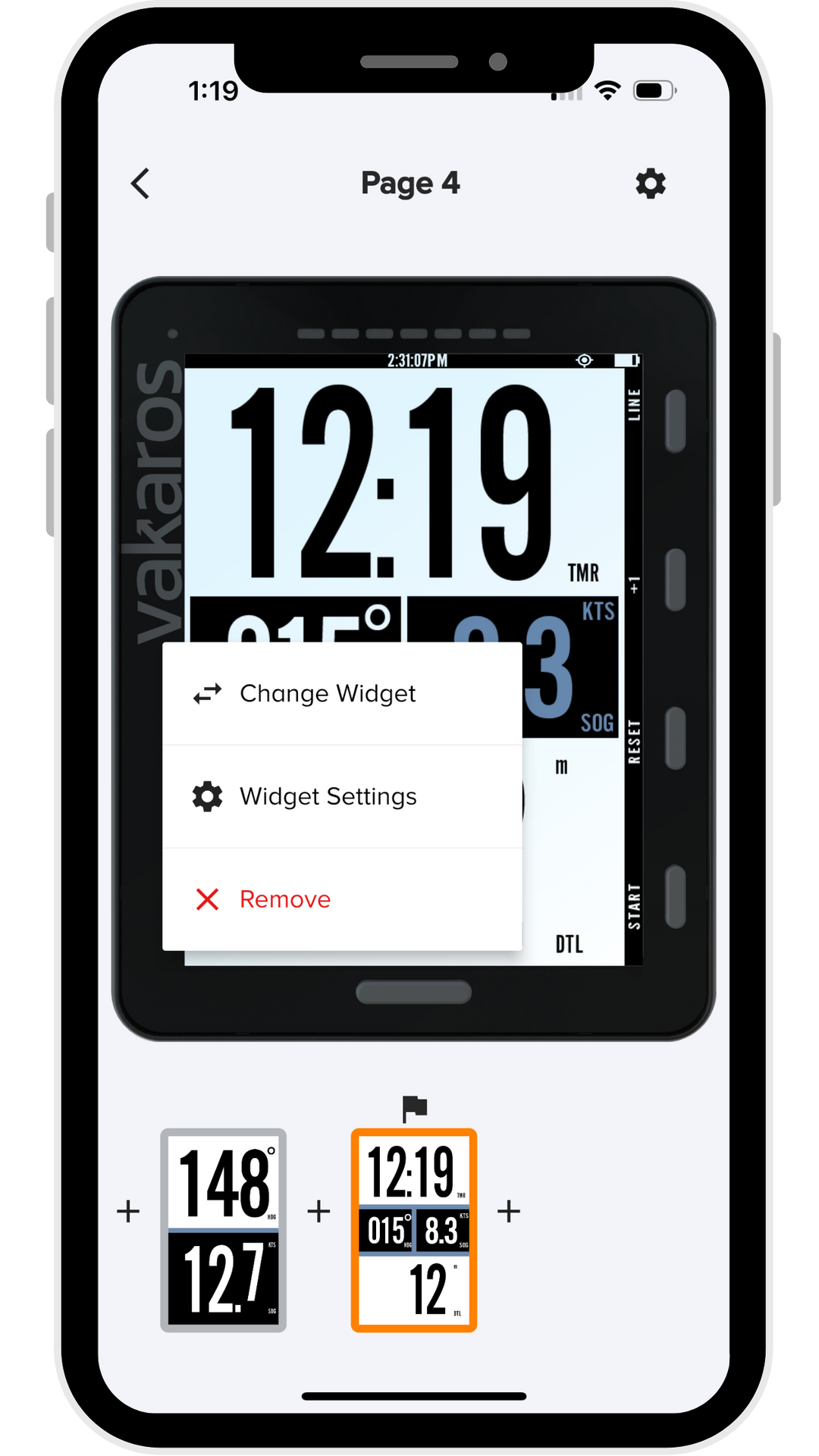

Build any combination of widgets using our Layout Builder to fully customize your Atlas 2 experience

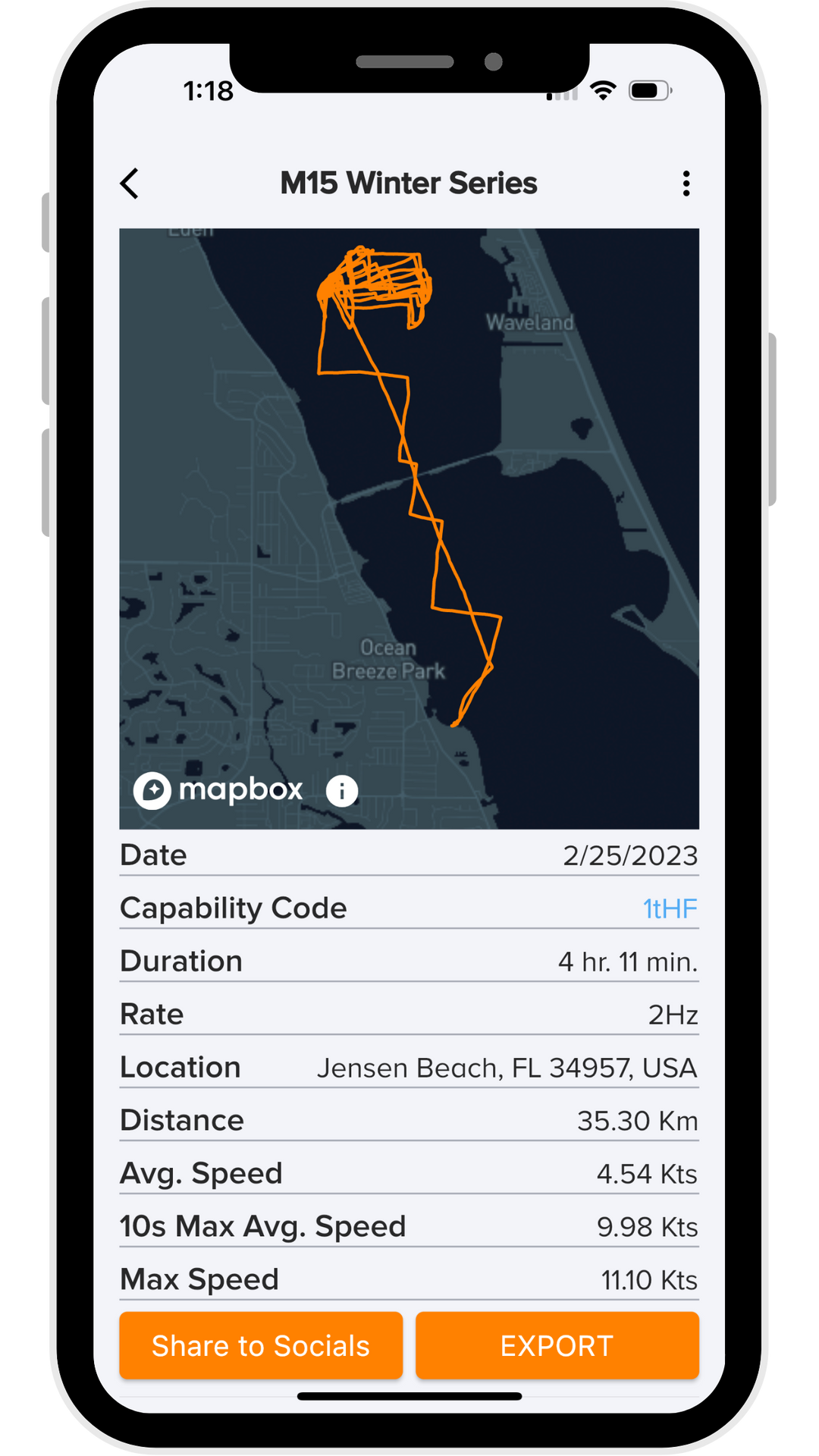

Every time your Atlas 2 is on, it is logging valuable telemetry data

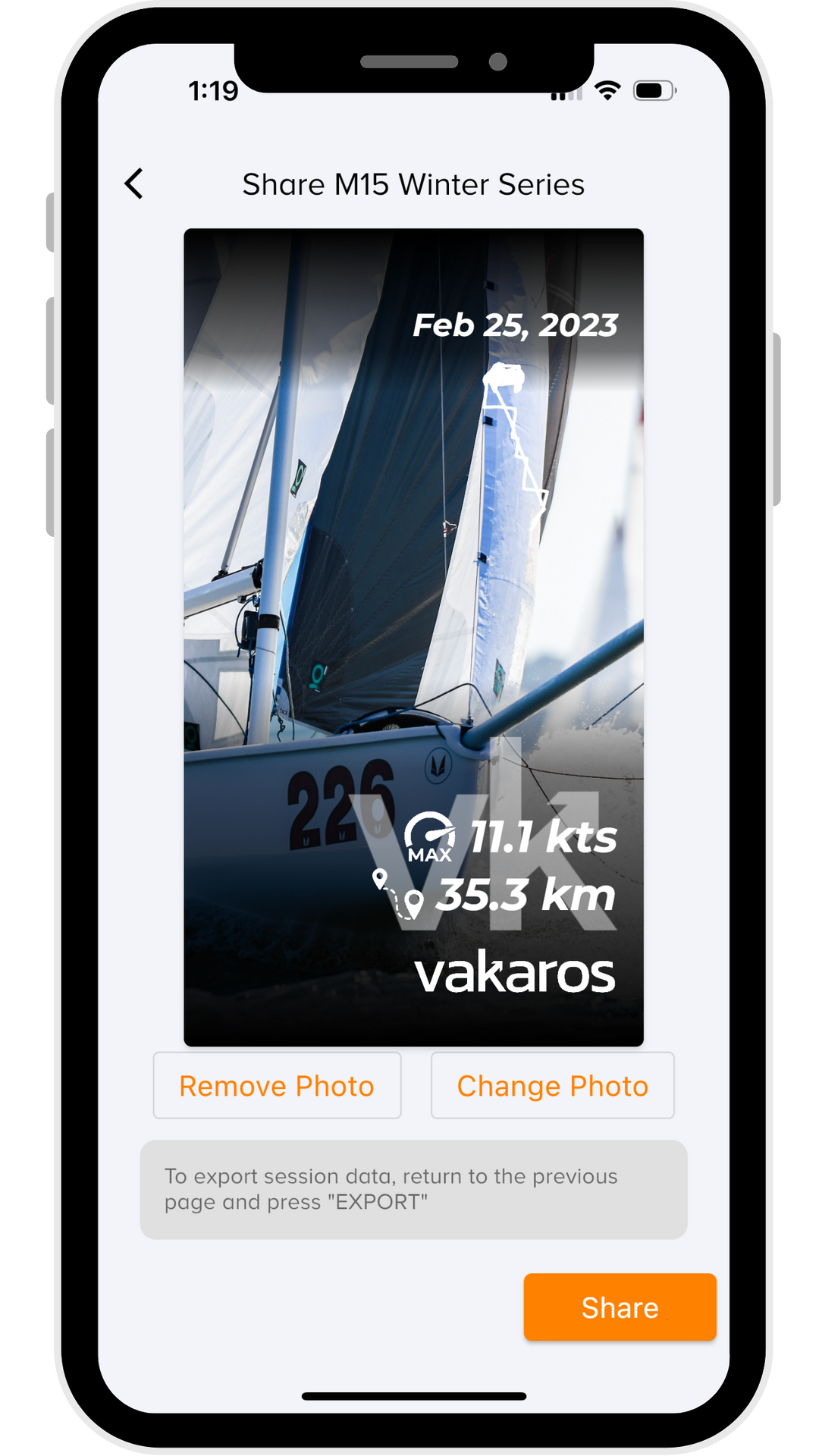

Add your photo. Show your friends. Share your sailing.

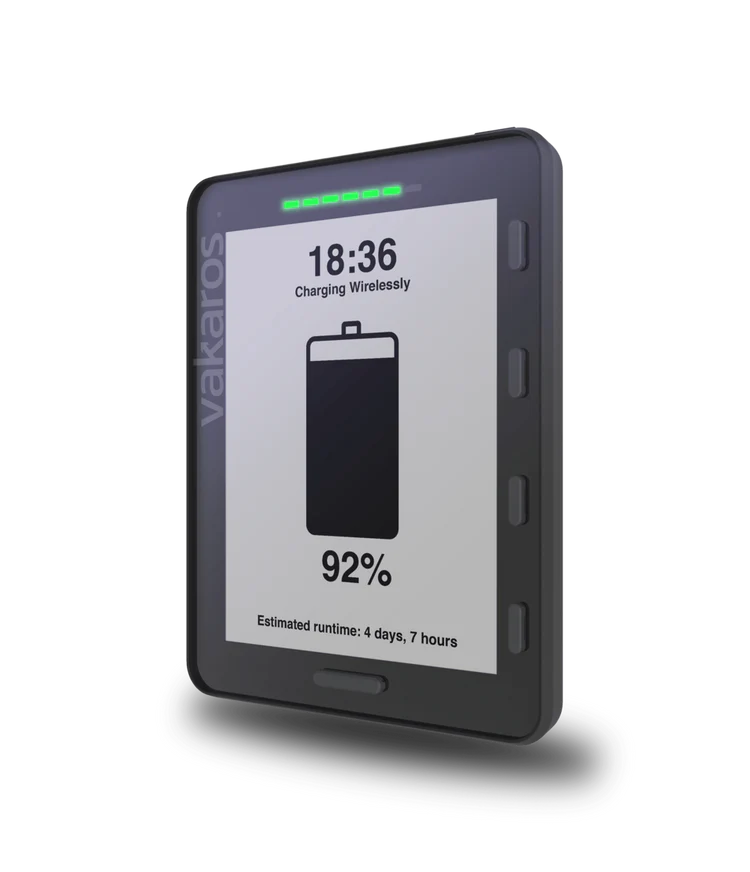

100 hours of battery, rechargable without wires

What’s better than wireless charging? Wireless charging and a battery that lasts for 100+ hours. Or to put that another way, over 4 days. Week-long regatta? No problem. Distance race? We've got you covered.

And if you ever do run it down, a 20 minute charge over breakfast will last an entire 10 hour day on the water. Better yet, the oversized Lithium Ion Polymer battery has capacity to spare, capacity we use to intelligently maximize charging cycles while delivering best-in class battery life. Because you’ll want to use it for years to come.


  • 25 Hz L1+L5 dual-band, multi-constellation GNSS receiver
  • 3-axis magnetometer
  • 3-axis gyroscope
  • 3-axis accelerometer
  • Ambient light sensor
  • Temperature sensor
  • Position
  • Velocity
  • Heading
  • Heel
  • Pitch
  • Data logging at 10 Hz
  • High contrast, sunlight-readable
  • 160 degree viewing cone
  • 4.4" transflective LCD screen
  • 320x240 pixel resolution, 91 ppi
  • Red backlight
  • Digits up to 90 mm height (landscape), 40 mm height (2 metrics, portrait mode)
  • Optically bonded 1.1 mm Gorilla Glass
  • Multi-layer anti-reflective (AR) coating
  • Water-shedding hydrophobic coating
  • RGB LED array
  • Run time: 100+ hours
  • Integrated 4600 mAh rechargeable lithium-ion battery
  • Qi-compatible wireless charging
  • 256 MB integrated storage
  • 100+ hours, depending on logging rate
  • Log at 2, 5, or 10Hz
  • Distance-to-line
  • Time-to-line
  • Time-to-burn
  • Countdown timer
  • Shift tracking
  • Stripchart view
  • VMG



The Atlas is a huge part of my training: we use data and video to get better and push to the Games.

Daniela Moroz
5x Formula Kite World Champion

The Atlas 2 informs almost every decision when I'm racing: I trust it for the best data on the water, end of story.

Mateus Kusznierewicz
Olympic Gold Medalist, Star World Champion

Without a doubt this is the absolute best instrument I have ever used. Incredible functionality coupled with a easy to use interface. Also very impressed with Vakaros customer service! Highly recommended for all sailors!
